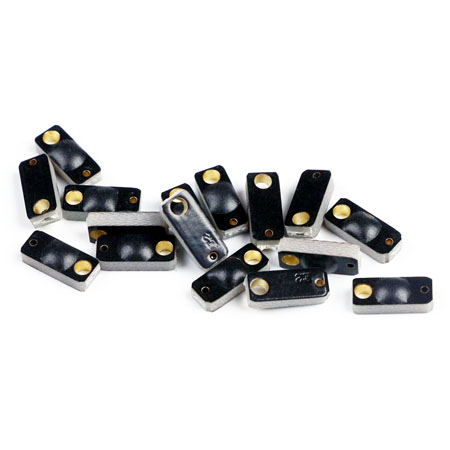

10x4x2mm,Read distance 1.35 meters very small rfid tags PCB1004

FLSPRO provides a large selection of very small RFID tags that are designed to be used in many applications where fitting into smaller areas is required to track and monitor small metal assets. PCB1004 is very small rfid tags in 10x4mm size, weight 0.5g, Its small form factor makes it the perfect rfid inventory tag for tracking laptops, servers in IT, vehicle tracking identification and other small metal tools. If you Want to know the cost of an rfid tag or more information about our small rfid tag customization service, please contact cici@flsrfidpro.com
  • Detailed Description



Size 10x4mm (Hole:D2mm)
Thickness 2.0mm
Material FR4(PCB)
Colour Black ( White,red,green,blue..)
Mounting Methods Adhesive
Weight 0.5g



Functional Specifications:
Air Interface Protocol - Standard EPC global Gen2,ISO/IEC 18000-6C
Operating Frequency (EU)865~868MHz / (US)902~928MHz
IC Type Alien Higgs-3
Memory EPC 96bits (Up to 480bits) , USER 512bits, TID64bits
Write Cycles 100,000 Times
Functionality Read/write
Data Retention 50 Year
Applicable Surface Metal Surfaces
Read Range(fixed reader) Up to 1.35m - (US) 902-928 MHz, on metal
Up to 1.35m - (EU) 865-869 MHz, on metal
Read Range(handheld reader) Up to 0.9m - (US) 902-928 MHz, on metal
Up to 0.75m - (EU) 865-869 MHz, on metal
Warranty 1 year



Environmental parameters:
IP Rating: IP68
Storage Temperature -20 ~ +150℃
Operation Temperature -20 ~ +100℃
Certifications Reach Approved, RoHS Approved, CE Approved

With globally advanced RFID electronic tag production technology and over 10 production lines, we can provide a comprehensive one-stop solution for large-scale IoT construction.
