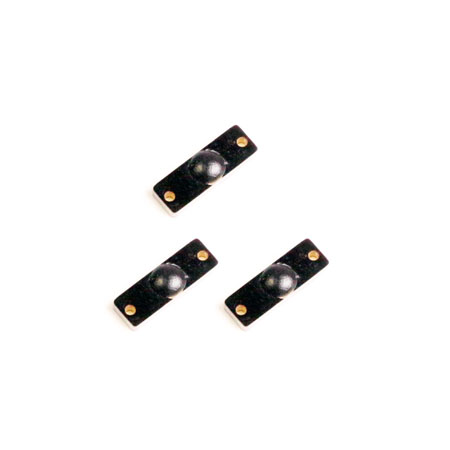

12x4x2.5mm,Read distance 1.5 meters rfid tags in retail PCB1204

PCB1204 are designed on PCB/FR-4 base material, solving the problem that RFID tags can’t work well on metal objects. It operates on 860 MHz to 960 MHz and is compatible with ISO18000-6C (EPC Class 1 Gen 2) standard. PCB1204 is a RFID tags for metal objects and mainly used in retail, warehouse logistics management, IT asset management, inventory management, assets management, automotive component tracking, industrial manufacturing, etc.

Inquiry Now

Detailed Description

Size	12.0 x 4.0mm
Thickness	1.5mm without ic bump, 2.5mm with ic bump
Material	FR4(PCB)
Colour	Black ( White,red,green,blue..)
Mounting Methods	Adhesive
Weight	0.2g

Functional Specifications:

Air Interface Protocol - Standard	EPC global Gen2，ISO/IEC 18000-6C
Operating Frequency	(EU)865~868MHz / (US)902～928MHz
IC Type	NXP UCODE 8
Memory	EPC 128 bits, USER 0 bits, TID 96 bits
Write Cycles	100,000 Times
Functionality	Read/write
Data Retention	50 Year
Applicable Surface	Metal Surfaces
Read Range(fixed reader)	Up to 1.5m - (US) 902-928 MHz, on metal
Read Range(fixed reader)	Up to 1.5m - (EU) 865-869 MHz, on metal
Read Range(handheld reader)	Up to 0.6m - (US) 902-928 MHz, on metal
Read Range(handheld reader)	Up to 0.6m - (EU) 865-869 MHz, on metal
Warranty	1 year

Environmental parameters:

IP Rating:	IP68
Storage Temperature	-20 ～ +150℃
Operation Temperature	-20 ～ +100℃
Certifications	Reach Approved, RoHS Approved, CE Approved
