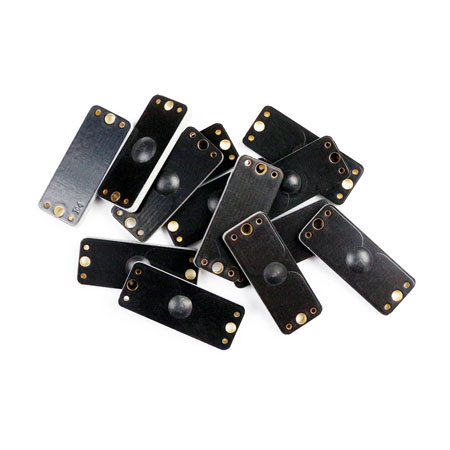

25x10x2mm,Read distance 3.25 meters retail rfid tags PCB2510

PCB2510 RFID tag can be used in RFID access control with a read distance of up to 3.25 meters (depends on reader), it can be affixed with a screw, a zip tie, come with adhesive backing or glued. Suitable for applications where an RFID tag on metal is needed. PCB2510 is also suitable for use as a retails rfid tag, it is shape in size 25*10mm,thickness in 2.0mm ,with 2 holes in diameter 2mm, chip in Alien H3, Operating temperature: -40C ~ 100C. It can be used for applications like logistics, warehousing, IT and financial services where cost and versatility is at a premium.
  • Detailed Description
Size 25mmx10mm (Hole:D2mmX2)
Thickness 2.0mm
Material FR4(PCB)
Colour Black ( White,red,green,blue..)
Mounting Methods Adhesive, Screw
Weight 1.3g




Functional Specifications:
Air Interface Protocol - Standard EPC global Gen2,ISO/IEC 18000-6C
Operating Frequency (EU)865~868MHz / (US)902~928MHz
IC Type Alien Higgs-3
Memory EPC 96bits (Up to 480bits) , USER 512bits, TID64bits
Write Cycles 100,000 Times
Functionality Read/write
Data Retention 50 Year
Applicable Surface Metal Surfaces
Read Range(fixed reader) Up to 3.25m - (US) 902-928 MHz, on metal
Up to 3.0m - (EU) 865-869 MHz, on metal
Read Range(handheld reader) Up to 2.5m - (US) 902-928 MHz, on metal
Up to 2.4m - (EU) 865-869 MHz, on metal
Warranty 1 year




Environmental parameters:
IP Rating: IP68
Storage Temperature -40°C to +150°C
Operation Temperature -40°C to +100°C
Certifications Reach Approved, RoHS Approved, CE Approved

With globally advanced RFID electronic tag production technology and over 10 production lines, we can provide a comprehensive one-stop solution for large-scale IoT construction.
