环氧树脂 RFID 卡
环氧树脂 RFID 卡
环氧树脂 RFID 卡
环氧树脂 RFID 卡
+

Epoxy RFID Card

A 45 × 30 × 3 mm pendant cast in clear epoxy over a PVC core and sealed to IP68. The thick resin dome is the point: it survives pool water, chlorine, sweat and the knocks that split a thin card, while the steel ring keeps it on a keyring, lanyard or locker hook.

CategoryAccess Control Card
Views1,088
Total Sold686,407
SpecificationClear epoxy dome, MIFARE Classic 1K, blank / Solid colour epoxy, custom print plus encoded data
Price联系询价
Download Specification
ItemSpecificationNote
尺寸45 × 30 × 3 毫米Pendant body, ring not included
材质PVC core with epoxy resin domeClear or solid colour resin
颜色Clear, white, black or custom pigment已匹配实物样本
安装Steel ring; elastic cord on requestRing takes repeated opening
重量≈ 5.0 gFinished tag with ring
协议ISO/IEC 14443AHF 标准
Frequency13.56 MHz (HF); LF or UHF optionalReader must match the chosen frequency
ChipMIFARE Classic 1KOther MIFARE options on request
内存1 KB, 16 sectors支持扇区密钥
读取范围1–100 mm(固定读取器)Shorter than a thin card; test on your reader
写入耐久性> 100,000 cycles—
防护等级IP68Immersion test agreed per order; not for diving
工作温度-40 °C to +85 °C—
存储温度-40 °C to +105 °C—
打印Under-dome print or surface print on solid resinUnder-dome print wears longest

Resin and frequency selection

SiteResin buildFrequency / chipWhy
泳池和温泉储物柜Clear dome, under-dome printHF 13.56 MHz, MIFARE Classic 1K防水防氯,印字经保护
健身会员Solid colour, surface printHF 13.56 MHz, MIFARE Classic 1K经受日常使用考验的品牌标签
Outdoor gate or barrierSolid colourUHF on request无需刻意轻触即可实现更远的读取距离
Legacy 125 kHz siteClear or solidLF on request兼容现有阅读器
Steel locker door清除穹顶、环状安装座HF 13.56 MHzRing keeps the tag off the steel face

Inspection before packing

CheckPass criteria失败时操作
Read testReads on the reference reader at 1–100 mmRe-encode or scrap
穹顶饰面No bubble, seam or cloudy patchReject the tag
EdgeRounded and polished, no sharp lipRe-finish or reject
SealNo gap between resin and coreReject the batch
PrintArtwork aligned and fully covered by resin重新分配
Ring pullRing holds the rated loadReplace the ring

Application scenarios

Swimming pools and spa lockers

湿手和钢制储物柜门是认证最难应对的组合。3毫米树脂圆顶可摔落瓷砖、擦干后重新挂回钥匙环,其下方的印刷内容在每日接触氯水后依然清晰可读。

Clear epoxy resin tag with a steel ring for pool and spa lockers

Gym membership tags

Members carry the tag on a keyring or a bag, tap it at the turnstile and use the same tag at the locker. Solid colour resin with surface print gives the club a branded tag that is thick enough to survive a gym bag and a changing-room floor.

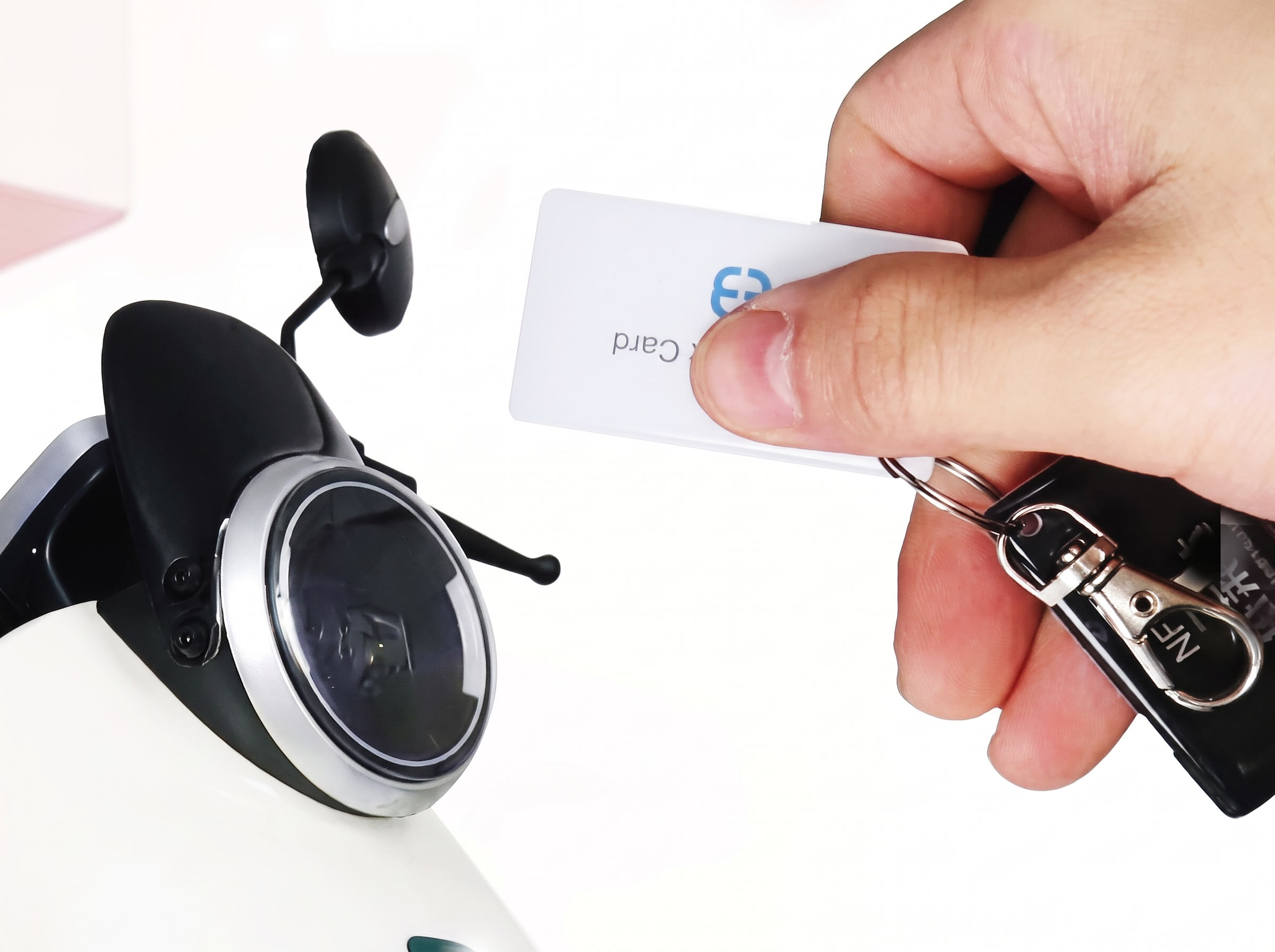

RFID tag carried on a steel keyring

Outdoor gates and villa keyrings

At a gate the tag has to cope with rain, sun and being dropped on stone. The sealed dome keeps water away from the inlay, and a ring mount keeps it off the metal face of the lock or the gate post where read range would otherwise drop.

Resin RFID tags on a wet outdoor stone surface

厚穹顶为何存在

A standard access card is 0.86 mm of laminate. This pendant is 3 mm of epoxy resin cast over a PVC core, and the difference is the whole point of the product. The extra material puts distance between the inlay and the outside world: a knock lands on resin instead of on the antenna, water has a long path to the chip, and the tag keeps working after the kind of handling that splits a thin card at the edge.

The body is 45 × 30 mm with a steel ring at the top, so it hangs from a keyring, a lanyard or a locker hook. The shape is fixed, which means there is no tooling decision and no mould cost before the first order — the choice is in the resin, the chip and the print.

Three small resin RFID tags lying on a wet stone surface

Six questions buyers ask before ordering

1. How thick is thick enough?

Thick enough means the resin covers the inlay completely, with no visible bump or sharp transition on the face. At 3 mm the tag feels solid in the hand and the edge can be rounded and polished. The check is simple: run a thumb across the face. If you can feel the chip or the antenna outline, the casting is too thin for a wet or high-traffic site.

2. Will it survive a pool or a shower?

The tag is rated IP68, which means dust-tight and tested for continuous immersion under the conditions agreed for the order. That covers a pool deck, a shower, a spilled drink and a wet locker shelf. It does not mean the tag is designed for diving or for chlorine at any concentration indefinitely; if the site runs a heavily chlorinated pool, say so and the sealing test is set to match.

3. Will it crack when it is dropped?

The PVC core gives the resin something to hold, and the rounded edge removes the thin lip where a cast tag usually chips. The realistic test is a drop onto tile from locker height with the tag on a ring, done on a sample before the bulk order. A tag that survives that will survive normal gym and pool handling.

4. Does the extra thickness cost read range?

Yes, a little. The inlay sits further from the reader surface, so the usable distance is shorter than a 0.86 mm card on the same reader. In exchange the tag is far more tolerant of being held at an angle or knocked against the reader. Read range is 1–100 mm on a fixed reader; confirm it on your own reader with a sample rather than relying on the maximum figure.

A resin-faced RFID tag carried on a steel keyring

5. Ring or cord?

A steel ring is the right choice for keys, a gym bag or a locker hook because it takes repeated opening and closing. An elastic cord is better when the tag is worn on the wrist or hung around the neck for a shift. Decide by how the tag is carried, not by how it looks in a photo; the attachment point is where these tags fail first.

6. Can it be printed, and where does the print go?

There are two routes. Print can sit under a clear dome, where the resin protects it from wear, or the resin itself can be pigmented to a solid colour and printed on the outside. Under-dome print lasts longer; surface print gives a sharper, more matte result and is easier to change between orders. For a membership tag that is handled daily, put the artwork under the dome.

将标签与门匹配

HF at 13.56 MHz with MIFARE Classic 1K is the default because it matches the door readers, locker locks and counter terminals already installed in gyms, spas and apartment buildings. LF and UHF are available as options: LF for legacy 125 kHz systems, UHF when the tag has to be read at a distance at a gate or barrier.

此标签并非抗金属产品。贴在钢制更衣柜门上时,读取距离会缩短,建议将其安装在把手或挂环上,而非直接贴合在钢板上。这一细节即可解决大多数“办公室内可用,但在更柜处失效”的问题。

该标签不包含

  • 无法打印的卡片。 It will not feed through an ID card printer; the print is applied during production.
  • Not a wristband.全天候佩戴时,硅胶表带更舒适。
  • Not an anti-metal tag.若需保证读取距离,请勿将其放置在平整钢面上。
  • Not a custom shape. The 45 × 30 mm body is fixed, which is what keeps the unit price and lead time predictable.

订单备注

Choose the resin first — clear dome or solid colour — then the chip and the print. Clear resin with under-dome print is the standard build; solid colour with surface print suits branded membership tags. Tell us the reader model, the mounting point and whether the tag will be in water daily, and the sealing test and chip option can be fixed before sampling.

Clear epoxy resin RFID pendant tag with a steel ring
