集成式超高频 RFID 读写器
集成式超高频 RFID 读写器
集成式超高频 RFID 读写器
+

Integrated UHF RFID Reader

Integrated UHF RFID reader with a built-in 9 dBi antenna and up to 27 dBm output: 0–10 m read range, over 200 tags per second, RS232 / Wiegand / relay interfaces plus optional TCP-IP, POE and Wi-Fi. For dock doors, conveyor lines, retail backrooms and asset cribs.

CategoryUHF Reader
Views734
Total Sold279,603
Specification9 dBi integrated reader, RS232 + Wiegand + relay, 27 dBm / POE + TCP/IP version with wall-mount bracket
Price联系询价
Download Specification

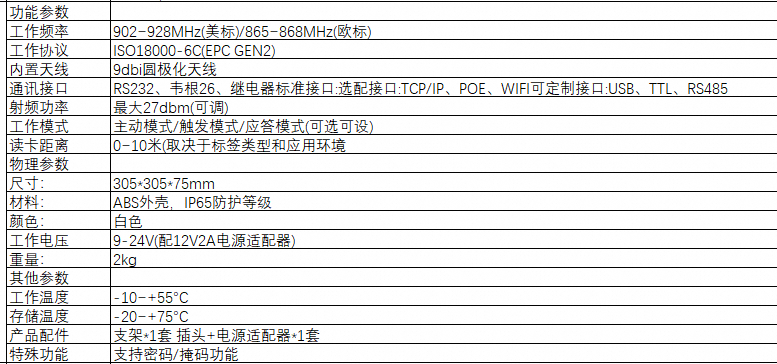

ParameterSpecificationNote
协议ISO 18000-6C (EPC Class 1 Gen 2)—
Frequency902–928 MHz (US) / 865–868 MHz (EU)Region set at factory
AntennaBuilt-in 9 dBi circularly polarisedBeam width ≈ 65°
射频功率0–27 dBm adjustable设定并锁定至初始配置
读取范围0–10 米(自由空气,标准标签)Depends on tag and orientation
Read speed> 200 标签/秒Dense-reader mode supported
InterfacesRS232, Wiegand 26/34, relay; TCP/IP, POE, Wi-Fi optionalChoose at order
电源9–24 V DC; POE optionalAdapter included in standard kit
HousingAluminium alloy, sealedIP65 with cable gland
工作温度-20 °C to +60 °CSunshade for outdoor use
尺寸220 × 220 × 55 毫米Bracket included
重量≈ 1.8 kg—

Choosing the mounting position

Position高度和角度最佳用途
Overhead gantry2.2–2.6 m, tilted 15–20°Dock doors, conveyor lines
侧装1.8–2.2 m, facing across the aisle高挑的天花板,侧向标签
Portal pairBoth sides, synchronisedWide gates, double-faced pallets
Desktop / tripod0.8–1.2 m, facing the counterTool crib, library returns

Commissioning checklist

StepActionPass criteria
1. RF power设置输出并锁定Matches the commissioning sheet
2. Read window在闸口使用客户标签进行测量Meets the agreed threshold
3. Tag countRead a known pallet of 50 tags100% detected, 3 consecutive passes
4. InterfaceEnd-to-end test to the panel or middlewareEvent received and logged
5. Thermal drift30-minute continuous readNo drop in read rate

Application scenarios

Dock doors and conveyor lines

Mounted on the gantry above the opening at 2.2 to 2.6 m and tilted 15 to 20 degrees, one reader covers a 1.5 m wide gate and still reads the top layer of a moving pallet. For a wider dock the answer is a second reader, not more output power.

Conveyor line inside a distribution centre fitted with fixed UHF readers

Outdoor gates and yard entrances

With the cable entry pointing down and a sunshade over the housing, the sealed unit sits on a pole at the yard entrance and reads vehicles and containers as they pass. The power supply stays indoors or in an IP-rated box.

Fixed UHF reader panels mounted on an overhead pole at an outdoor site entrance

Tool cribs and asset checkout points

One reader over the crib doorway turns checkout into a walk-through, and its relay output can drive a light tower or alarm when an item leaves without a record. No operator stands at the door.

Warehouse staff using a handheld terminal beside fixed UHF infrastructure at an asset checkout point

What "integrated" actually saves you

A split reader means four decisions: reader, antenna, cable and mounting. An integrated reader folds all four into one housing — the 9 dBi circularly polarised antenna, the RF board, the power regulation and the interfaces sit behind one faceplate. Installation becomes: fix the bracket, run one cable, set the power.

在需要十个或二十个读取点时,这一点尤为关键。每个分割点都会增加一段电缆布线、一个防雷决策和一个安装支架;而集成式读卡器则消除了这些单点的工程负担及其伴随的故障模式。

Conveyor line inside a distribution centre where fixed UHF readers are installed

The parameters that decide performance

Read range is the headline number, but four settings decide whether a site hits it: RF power, antenna gain, tag orientation and the dwell time of the object in the field.

With 27 dBm output and a 9 dBi antenna, a standard UHF label reads at 0–10 m in free air. At a gate 1.5 m wide, that is more than enough margin; at a 10 m wide dock, you need two readers or a portal design. We size the installation from the actual gate width, not from the datasheet maximum.

Interfaces and how to integrate

RS232 / RS485

The default for PLC and legacy middleware. Simple, deterministic, no network configuration.

Wiegand 26

Connects straight to access-control panels that already speak Wiegand — the reader looks like a long-range card reader to the panel.

Relay output

Drives a gate, alarm or light tower without any software layer. Useful for anti-theft and simple presence detection.

TCP/IP, POE and Wi-Fi (optional)

For multi-reader sites where a single middleware collects events. POE removes the separate power run.

Mounting positions that work

Overhead gantry: antenna face down, 2.2–2.6 m above the floor, tilted 15–20° toward the oncoming pallet. Best for dock doors and conveyor lines.

Side mount:天线横跨过道,高度为 1.8–2.2 米。适用于天花板过高或标签朝向侧向的场景。

Portal pair: two readers facing each other at a gate. Reads both faces of a pallet without dead zones; wire them to avoid simultaneous transmission.

仓库人员使用手持终端配合固定式 UHF 基础设施

Environment and protection

The aluminium housing is sealed for dusty and humid warehouses; working temperature range -20 °C to +60 °C. For outdoor gates, add a sunshade and point the cable entry down to avoid water tracking along the cable.

Commissioning checklist

Before handover we run a five-step check: RF power set and locked, read window measured with the customer's tag, tag count verified against a known pallet, interface tested end to end, and a 30-minute continuous read log to catch thermal drift.

Where integrated readers are used

Dock doors and warehouse portals  |  Conveyor and sorting lines  |  Retail backroom and anti-theft gates  |  Asset and tool cribs  |  Library returns  |  Production line tracking

Wide warehouse aisle with pallet racks where fixed UHF readers monitor movement

Two field notes

Dock door, 12 gates

约束条件: forklifts passing at speed produced missed reads on the top layer of pallets.

解决方案: overhead gantries with a 20° tilt, 27 dBm output, dense-reader mode on the Gen2 protocol.

结果: read rate at the gate met the WMS threshold on the first trial pallet.

Tool crib, 4,000 tools

约束条件: tools left the crib unrecorded; barcode checkout was too slow at shift change.

解决方案:在婴儿床门上方安装集成读卡器,工具手柄上设置标签,并通过继电器输出连接警示灯塔以防范未授权取用。

结果: checkout became a walk-through, and removals without a record stopped.

MOQ and lead time

MOQ: 5 pcs for standard models; 20 pcs for OEM branding and custom firmware.

示例: 3–5 working days from stock.

批量: 15–20 working days after approval. Configuration and firmware testing included.

Questions buyers ask first

能否穿透卡车门进行读取?

No — metal blocks UHF. Mount the reader inside the dock or on the door frame so the pallet passes through the field.

How many tags per second?

Over 200 tags/s in clean conditions. Dense pallets read slower; use dense-reader mode and verify with a real pallet.

Can two readers face each other?

Yes, but synchronise their transmission windows (reader-to-reader anti-collision) to avoid interference.

是否兼容现有的 Wiegand 面板?

Yes. In Wiegand 26 mode the panel sees a card number; the EPC is mapped to the card number in the reader configuration.

Is POE available?

Yes as an option. Standard models use 9–24 V DC; POE removes the separate power cable.

What about outdoor installation?

Add a sunshade, seal the cable entry downward and keep the power supply indoors or in an IP-rated box.
