RFID 手持 PDA
RFID 手持 PDA
RFID 手持 PDA
RFID 手持 PDA
+

RFID Handheld PDA

A UHF RFID handheld terminal for stocktaking, receiving, picking and reconciliation: Android 10.0 on a 5.5-inch 720×1440 IPS display, EPC C1G2 / ISO18000-6C reading with an adjustable 0–20 m range, 2D barcode capture, a 7200 mAh battery rated for more than 14 hours and a 630 g IP65 body.

CategoryRFID Smart Equipment
Views360
Total Sold726,982
SpecificationAndroid 10.0, UHF RFID, 5.5-inch display, 7200 mAh / Android 10.0, UHF RFID plus 2D scan head, 7200 mAh
Price联系询价
Download Specification

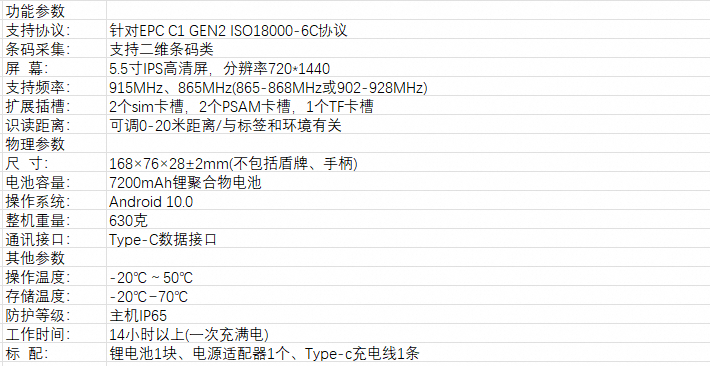

ItemSpecificationNote
Operating systemAndroid 10.0—
Display5.5-inch IPS HD, 720×1440Readable under warehouse lighting
RFID protocolEPC C1G2 / ISO18000-6C—
Frequency865–868 MHz / 902–928 MHzRegion dependent
读取距离0–20 米,可调节Depends on tag and environment
Barcode2D barcode captureStandard version reads RFID only
电池7200 mAh lithium polymerSpare pack optional
Operating timeMore than 14 hours per full chargeNormal scan-heavy use
Expansion2 SIM, 2 PSAM, 1 TF slotFor cellular data and secure modules
尺寸168 × 76 × 28 ±2 毫米Excluding shield and handle
重量630 g包含电池
Data interfaceType-CCharging and data transfer
防护等级IP65, main unitDust and splash resistant
工作温度−20 to +50 °C—
存储温度−20 to +70 °C—
Standard accessoriesLithium battery, power adapter, Type-C cableReady to use out of the box

Configuration choice

Decision选项Choose whenTrade-off
Capture mode仅 RFIDAll stock is UHF taggedLowest cost, no barcode fallback
Capture modeRFID + 2D scan headTagged and barcode-only stock share the siteHigher price, one device for both
Band865–868 MHz or 902–928 MHzMatch the region of useSet at order, not switchable in the field
电源7200 mAh packSingle shiftMore than 14 hours typical
CarryHand-held with pistol gripLong counts at chest height630 g including battery

Factory inspection sheet

CheckPass criteria失败时操作
RF read testReference tag read in four orientations at rated powerRe-test with spare antenna, then reject unit
Barcode test首次扫描 2D 码样本Clean or replace scan head
Display and touchNo dead pixels, touch responds at all edgesReplace screen module
Battery testCharge and discharge at rated capacity without overheatingReplace battery pack
Seal checkNo water ingress after splash test on the main unitRe-seal or reject housing
Packing checkBattery, adapter, cable and manual presentHold shipment

Application scenarios

Warehouse stocktaking

One operator walks the aisle and sweeps the antenna across each rack level while the app compares reads with the location list. Exception lines are resolved at the shelf, so the count is closed at the end of the route instead of after a second visit.

Worker scanning cartons on a pallet rack with a handheld terminal

Receiving and dispatch

At the dock the terminal reads every tag on a pallet in one sweep and uses the 2D head for items that still carry only a supplier barcode. The expected list is checked on screen before the driver signs, which keeps shortages and mis-ships on the dock rather than in the stock record.

双手正在已开启的纸箱上操作手持终端

Asset inventory

For IT, tooling or cable stock, the terminal locates an asset by its tag and records the move on the spot. Reading through a closed cabinet or a coil of cable is a matter of distance and orientation, so the adjustable 0–20 m range is set to the storage type rather than left at maximum.

手持终端读取机柜中的电缆标签

One terminal for four jobs on the floor

A handheld RFID terminal earns its price when a worker carries one device instead of three. This one runs Android 10.0 on a 5.5-inch IPS display at 720×1440, reads EPC C1G2 / ISO18000-6C tags at an adjustable 0–20 m, captures 2D barcodes, and keeps going for more than 14 hours on a 7200 mAh battery. In practice that covers the four jobs that fill a warehouse shift: counting stock, receiving goods, finding an item, and checking the result before the shift closes.

手持式 RFID 枪型终端

Stocktaking: walk each aisle once

Before the walk

将位置列表加载到计数应用中,并设置巷道宽度对应的读取功率。在金属货架之间的狭窄巷道中,降低功率可避免读取相邻货位的标签;在开阔区域则可提高功率。将电池充满电,仅当作业路线超过正常班次时长时才携带备用电池。

Scan pattern

Hold the terminal at chest height with the antenna facing the shelf, and sweep along each level at walking pace. On a shelf two metres high, two passes — one at waist level and one at shoulder level — cover the full face without stopping. Tags on the far side of a carton stack may need the terminal closer to the gap.

Exceptions

Anything the app flags as unexpected is resolved at the shelf, not at the desk: read the barcode on the carton, check the location code, and mark the line as found, moved or missing. The point of one pass is that the floor is settled while the operator is still standing in front of it.

Warehouse worker scanning cartons on a pallet rack

Receiving: from pallet to record before the truck leaves

At the dock the terminal does two jobs at once. RFID reads every tagged carton on the pallet in a single sweep, and the 2D scan head reads the supplier barcode on items that are not tagged yet. The receiving screen shows the expected lines against the reads, so a short delivery is caught while the driver is still there to sign for it.

Keep the read window short: one sweep across each face of the pallet, confirm the count on screen, and move to the next pallet. Re-reading the same pallet twice adds no information and slows the dock down.

Hands checking a handheld terminal over an opened carton at a receiving dock

发现:读取标签,而非显示文本

When an order needs one specific item, the terminal works as a locator. Enter or scan the item number, walk the aisle and watch the signal strength: the app narrows the search from bay to shelf to carton. This is faster than reading labels one by one, and it works when the carton print has faded or the item has been moved to an overflow location.

Checking and reconciliation at the end of the shift

The last job is the one that keeps the data honest. Walk the same route again with the exception list open, confirm that flagged items are physically where the record says, and send the file to the back office over Wi-Fi. A terminal that ran all day without a recharge makes this second pass possible without swapping batteries mid-route.

The main unit is rated IP65, so dust from a concrete floor and a splash at the dock door are not a problem. At 630 g, the terminal is light enough to hold at chest height through a long count without the wrist fatigue that comes with a heavier brick.

Handheld terminal reading tags on cables in a rack

What to settle before the first rollout

Which capture mode

If every item already carries a UHF tag, the standard RFID version is enough. If the site still runs barcode-only stock alongside tagged stock, choose the version with the 2D scan head so one device closes both gaps.

Where the data goes

Decide before deployment whether the app writes to the WMS in real time over Wi-Fi or batches the file for upload at the end of the route. The terminal supports both patterns; the choice changes how the exception screen should behave.

Power and charging

The 7200 mAh pack covers more than 14 hours of normal use. For double shifts, plan a charging point at the dock rather than a second battery in every holster, and standardise on the Type-C cable that ships with the unit.

Hardware that survives a full shift

Beyond the radio, three details decide whether the terminal is liked on the floor: a display that stays readable under warehouse lighting, a body that does not slip out of a gloved hand, and a battery that lasts the route. The 5.5-inch IPS panel at 720×1440 covers the first, the 630 g housing with a pistol grip covers the second, and the 7200 mAh pack covers the third. The expansion slots — two SIM, two PSAM and one TF — are there for sites that add cellular data or secure payment modules later.
