RFID 纽扣式洗衣标签
RFID 纽扣式洗衣标签
RFID 纽扣式洗衣标签
RFID 纽扣式洗衣标签
+

RFID 纽扣式洗衣标签

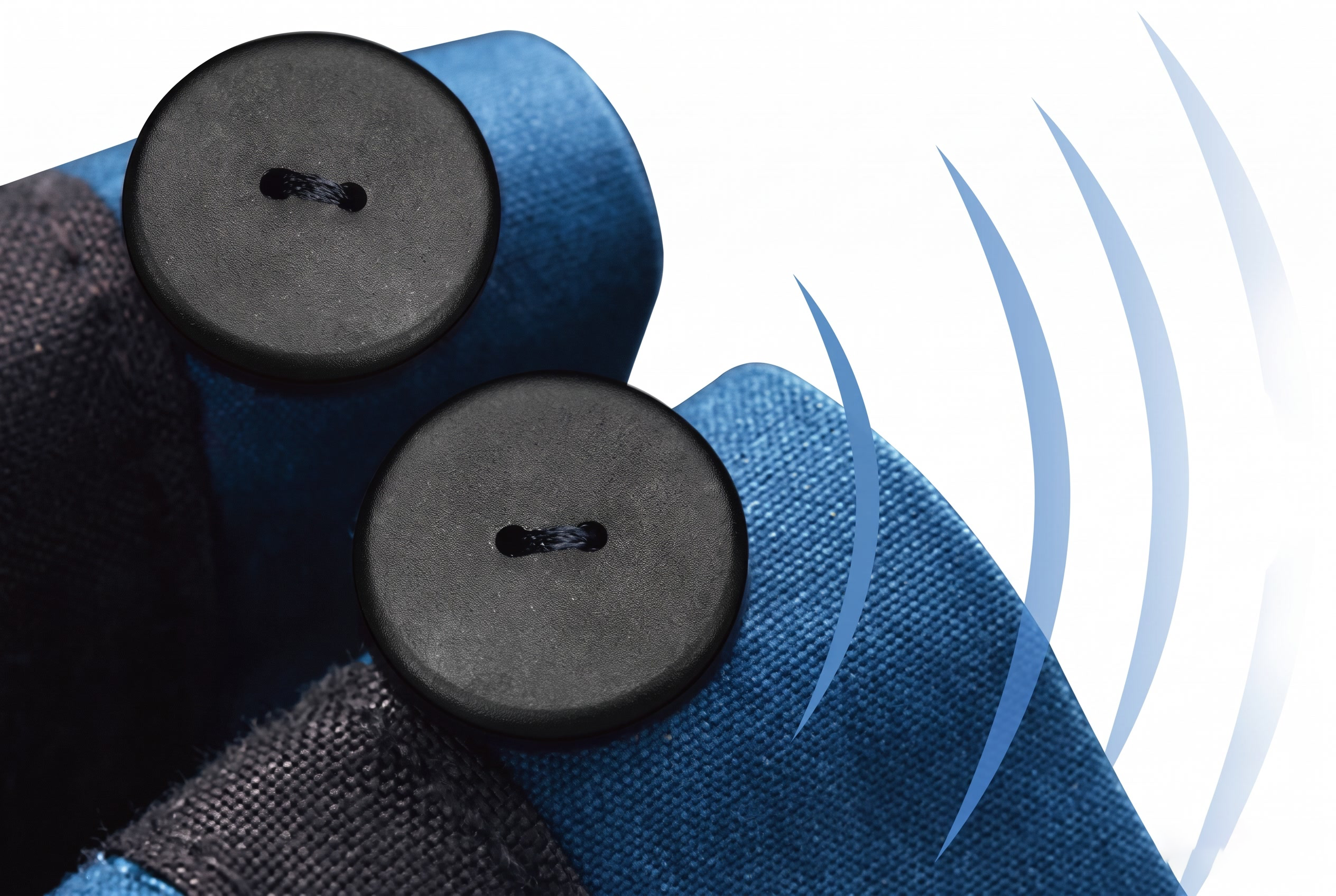

A PPS button tag that survives the whole laundry loop — check-in, tunnel wash, high-temperature drying and re-sorting. Ø25.5 mm, EPC Gen 2 UHF at 905–928 MHz, U9/H9 chip, IP68, sewn into the hem of hotel linen, hospital textiles and rented workwear.

CategoryRFID Laundry Tag
Views1,892
Total Sold209,887
SpecificationPPS button, U9, black, blank / PPS button, H9, custom colour and laser numbering
Price联系询价
Download Specification
ItemSpecificationNote
尺寸Ø25.5 毫米Sewn-on button form
材质PPSRigid, non-absorbent
颜色Black standard; other colours on requestMatched to a sealed sample
重量4.0 g—
安装缝制Same stitch as a normal button
协议EPC 类 1 代 2 / ISO 18000-6C—
Frequency905–928 MHz (CN & US)—
ChipU9 / H9Selected per order
内存96 or 128-bit EPC; 512-bit user芯片相关
Read range (handheld)≥1 m1 W,0–3 dBi,自由空间
Read range (fixed reader)≥2 m4 W,6–12 dBi,自由空间
防护等级IP68Wash liquor and immersion
工作温度-40 至 +70 °CContinuous
存储温度-40 至 +120 °C短烘干峰
应用表面Non-metalFabric and linen

构建选择

BuildChipTypical useWhat changes
StandardU9酒店与医院布草,批量项目Lowest cost per tag
High-memoryH9带使用寿命数据的工装租赁Larger user-memory block
NumberedU9 / H9Laundries serving several ownersVisible ID marked on the button face
Colour-codedU9 / H9按部门或客户排序模制颜色与密封样品一致

Factory inspection sheet

CheckPass criteria失败时操作
Read testReads at both ends of the client's reader windowRe-encode or scrap
Shell seal浸水测试后无进水Scrap
DimensionØ25.5 mm within toleranceReject
颜色Matches sealed sample under D65 light隔离批次,重新匹配
NumberingReadable after wash simulationRe-mark or scrap

Application scenarios

Hotel linen laundry

Bed sheets, duvet covers and towels come back in slings; the gate counts them on the way in and on the way out. The button is sewn into the hem where housekeeping already checks for damage, so a torn piece is flagged in the same pass as a lost one.

Cart of white hotel linen moving through an industrial laundry

Hospital textiles and workwear

Scrubs, patient gowns and staff uniforms are read at the ward collection point and again at the plant. Because the tag is a sealed disc, it takes the disinfectant wash and the press without a separate protective pouch, and the service counter in user memory tells the laundry when a garment should be retired.

Two black button tags laid on blue hospital fabric

工装租赁与循环洗涤

在租赁项目中,标签是衣物在数十位所有者和多次洗涤周期中唯一固定的身份标识。它在入库时被读取,按面料分配至具体项目,并在出库时再次读取,使租赁公司能够按件、按周期自动计费,无需人工计数。

Folded white linen on a laundry sorting table

What a button tag changes on the wash line

A laundry tag is judged by what happens between the soiled-linen chute and the clean-linen trolley, not by how it looks on a sample card. This tag is a 25.5 mm PPS button with an EPC Gen 2 inlay sealed inside: it is sewn into the hem like a spare button, then read in bulk at the tunnel, at the dryer and at the sorting station.

Because it is read while the linen is moving, staff stop counting pieces by hand and stop relying on barcodes that fade after a few dozen washes. The tag carries the linen's identity — item type, owner, wash programme, service life — and the reader logs it at every gate.

Industrial laundry with a cart of white linen beside a tunnel washer

Step 1 — Check-in and sorting

脏布草以袋装形式送达。在登记站,固定式或手持式阅读器在倒空布草袋时自动计数,洗衣房可提前掌握回收数量,再将其投入洗涤流程。标签可透过折叠的织物直接读取,无需拆开或铺平。

对于租赁工装,同一读取操作会将每件服装分配至其面料所需的洗涤程序。已用尽额定使用寿命的服装可在此时移除,避免在服务中发生故障。

Step 2 — The wash tunnel

在隧道内,标签处于湿润状态,夹在亚麻层之间并接触洗涤剂与碱性物质。PPS 主体为硬质塑料外壳而非层压标签,因此浸泡时不会分层;嵌入式芯片位于圆盘中心,受压辊和滚轮的压力无法将其压碎。

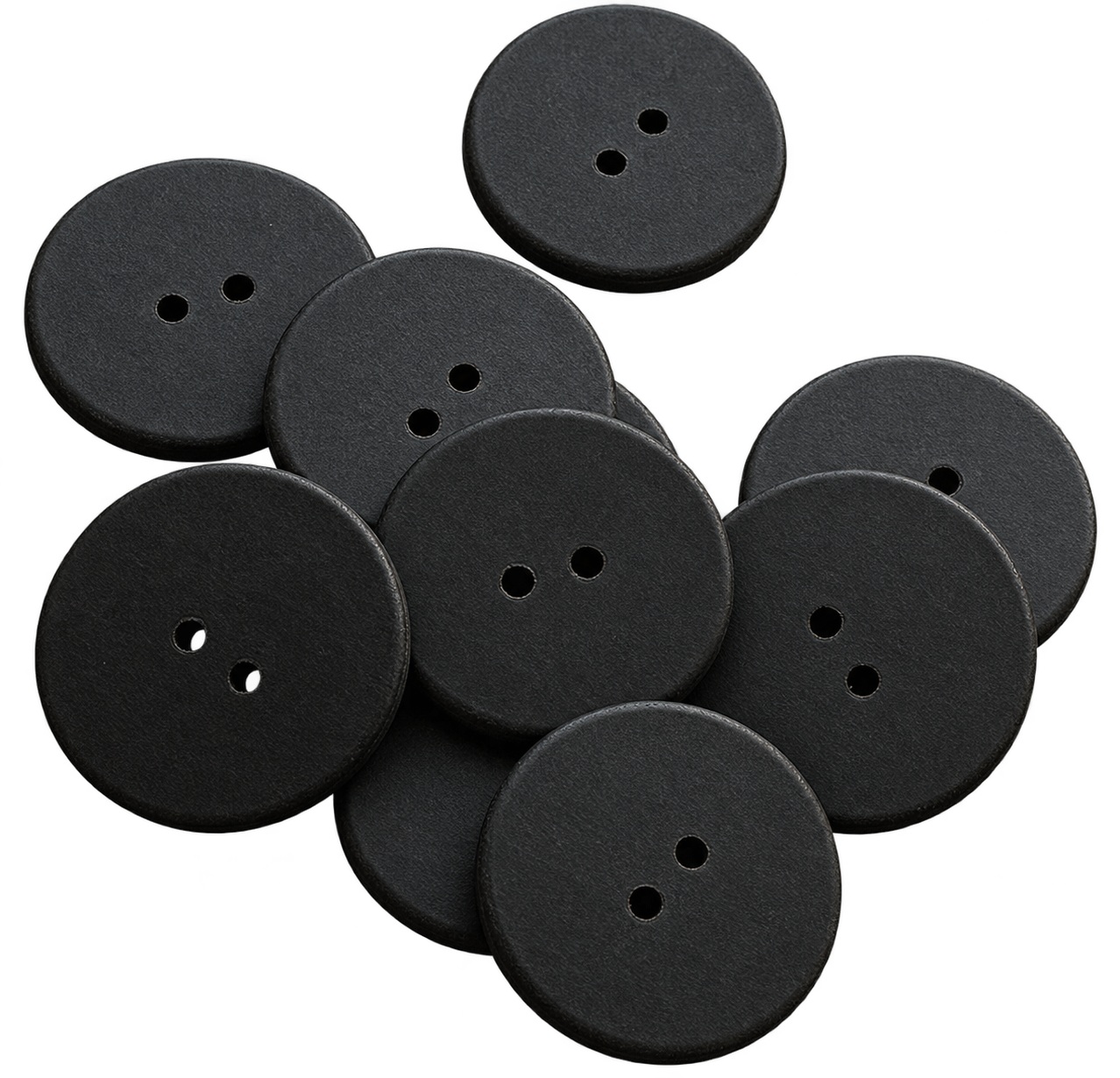

Pile of black PPS button laundry tags

The 905–928 MHz band is the UHF band used by most laundry gate systems in China and North America. Read range is quoted at ≥1 m with a handheld reader and ≥2 m with a fixed reader — enough for a bag-count gate, and no reason to over-specify the reader.

步骤 3 — 高温干燥

薄标签的弱点在于耐干性:层压软化导致天线移位,读率经数次循环后下降。本款按钮支持在 -40 °C 至 +70 °C 环境下连续工作,储存及短时峰值温度可达 +120 °C,其 PPS 外壳在这些温度下仍能保持形状。

The important detail is not the headline number but the construction: no adhesive layer, no paper face, no open edge for water to enter. A tag that is sealed as one piece has nothing to peel apart.

步骤 4 — 分拣、分发与复用

Clean linen is sorted by destination: floor, department, restaurant or customer. A reader above the sorting table tells the operator which pile a piece belongs to, and the dispatch gate records what leaves the plant. When the linen returns next week, the same tag is read again — there is no re-labelling step.

折叠好的白色床品堆叠,待分拣

A 4 g button adds little weight and sits flat against the fabric, so it passes through presses and folders without catching. It is sewn on with the same stitch as a normal button, which means existing repair stations can attach it without new tooling.

Built for the wash process, not the shelf

  • PPS body, Ø25.5 mm, 4.0 g — rigid, non-absorbent, sewn into the hem.
  • EPC Class 1 Gen 2 / ISO 18000-6C, 905–928 MHz, U9/H9 chip.
  • 96/128-bit EPC and 512-bit user memory — enough for an item ID plus a service counter.
  • IP68; operating -40 to +70 °C, storage -40 to +120 °C.
  • ≥1 m on a handheld reader, ≥2 m on a fixed reader in free air.

Choosing the chip and the finish

U9 型专为酒店和医院布草的大批量应用设计,配合固定读写器和通道门即可完成作业。H9 型则适用于需要更大用户存储区的项目,例如用于洗涤计数器或在标签上直接写入使用寿命字段。两款型号均支持颜色标识和激光编号,洗衣房可一目了然地按归属方进行分类。

Questions buyers ask first

Will it survive a tunnel washer?

Yes — the tag is a sealed PPS disc rated to IP68, with the inlay in the centre of the body. Tell us the wash programme and drying temperature and we will confirm the build against it.

Can it be read inside a full bag?

Usually yes. UHF reads through fabric; the practical range depends on how densely the bag is packed and on the reader. A fixed gate at the check-in point is the usual configuration.

是否适用于金属推车?

此标签专为非金属服务设计,需缝制于织物内,不可安装在金属上。请将其保留在亚麻布上,避免与钢表面直接接触。

Can we print our logo or a number?

Yes. Colour and laser numbering are available; numbering is normally marked on the button face together with the moulded colour.
